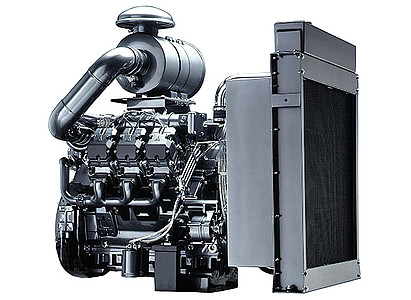

BF 6 M 1015 CP

Water-cooled V6 engine with turbocharging, charge air cooling and four-valve technology.
Also available with an electronic motor regulator (EMR) to allow easy integration into the electronic device control and monitoring system.
The robust engine design allows worldwide operation even with high sulphur fuels.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
Robust and reliable mechanical injection system.
Best cold starting performance even under extreme conditions.
A very good load response ensures an immediate power supply.

Technical data
Emission norms EU II, US T2
Number of cylinders 6
Bore 132 mm5.2 in
Stroke 145 mm5.7 in
Displacement 11.9 l727 cu in
Typical generator power at 50 Hz / 1500 rpm
Typical generator power (COP) 303 kW406 hp
Typical generator power (PRP) 338 kW453 hp
Typical generator power (LTP) 365 kW490 hp
Typical generator power at 60 Hz / 1800 rpm
Typical generator power (COP) 320 kW429 hp
Typical generator power (PRP) 351 kW471 hp
Typical generator power (LTP) 384 kW515 hp
Length 1635 mm64 in
Width 1515 mm60 in
Height 1925 mm76 in
Weight 1055 kg2326 lb
Download data sheet (PDF-file)
