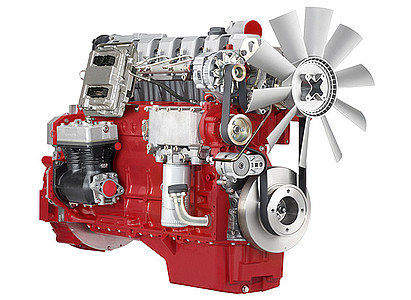

TCD 2013 L4 2V

Water-cooled 4-cylinder inline engine with turbocharging and charge air cooling
The powerful DEUTZ Common-Rail (DCR®) injection system and the electronic engine control (EMR 3) with intelligent link to the drive management ensure optimum engine performance at low fuel consumption.
The 4-cylinder is also available with a mechanical injection system.
Best cold starting properties even under extreme conditions.
Low noise emissions due to acoustically optimized components with very smooth running and high durability.
The compact engine design and three PTO drive possibilities integrated into the gear drive reduce the installation costs and increase the number of applications.
Wet cylinder liners, long oil change intervals and easy changing of the engine fluids reduce the running and service costs and increase the availability of the machinery.
The robust engine design allows worldwide operation even with high sulphur fuels.

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 4
Bore 108 mm4.3 in
Stroke 130 mm5.1 in
Displacement 4.8 l293 cu in
Maximum nominal speed 2300 rpm
Power output 104 kW139 hp
at speeds 2200 rpm
Max. torque 565 Nm417 lb/ft
at speeds 1600 rpm
Min. idling speed 900 rpm
Specific fuel consumption 218 g/kWh0.36 lb/hph
Length 857 mm33.7 in
Width 638 mm25.1 in
Height 870 mm34.3 in
Weight 500 kg1102 lb
Download data sheet (PDF-file)
