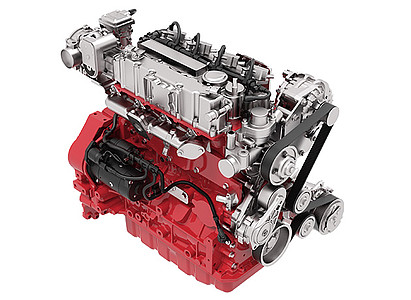

G 2.9 L4

Newly-designed, water-cooled 4-cylinder spark ignited LPG engine.
Robust engine design for demanding industrial applications based on the successful TCD 2.9 series.
Full electonic controlled LPG gas system, stoichiometric combustion, closed loop control and knocking sensors for lowest emissions and best performance at the same time.
Open EAT system (3 way catalyst) means 100% machine availability even under lowest load duty cycles.
Same foot print and major installation interfaces as diesel engines TCD 2.2/2.9 for ease of installation in diesel and gas powered machines.
Up to 1000 h oil change intervals, maintenance-free valve train and optionally service-friendly multi-V belt drive result in low maintenance cost and increased machine availability.
The extremely compact engine design and customer friendly accessories reduce the installation cost and increase the number of applications.
100% power take-off at flywheel and front end and additional side PTO drive with up to 120 Nm for the mounting of hydraulic pumps.
Compact 3-way catalyst for future EU Stage V and EPA Tier 4 compliance.
Variants without EAT for lesser regulated markets will en-large the product range at a later point of time.


Technical data
Emission norms US T2, EU V
Series G 2.2/2.9
Number of cylinders 4
Bore 92 mm3.6 in
Stroke 110 mm4.3 in
Displacement 2.9 l178 cu in
Maximum nominal speed 2800 rpm
Power output 54 kW72 hp
at speeds 2800 rpm
Max. torque 215 Nm159 lb/ft
at speeds 1400 rpm
Min. idling speed 900 rpm
Length 719 mm28.3 in
Width 498 mm19.6 in
Height 719 mm28.3 in
Weight 220 kg485 lb
Download data sheet (PDF-file)
