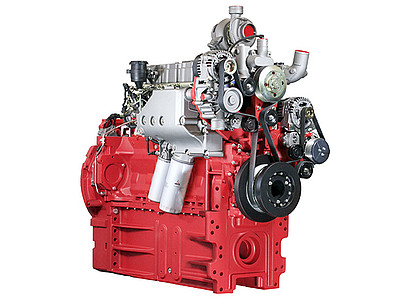

TCD 2013 L6 2V (Agri)

Engine for agricultural machinery.
Modern, liquid-cooled 6-cylinder in-line engine.
Turbocharged with intercooler
Powerful, rugged engine providing high power density
PTO facilities integrated in geared drive
Electronic engine control with intelligent adaptation to drive management
High-pressure fuel injection with DEUTZ Common Rail System (DCR®)
4-cylinder optional with mechanical injection pump up to 104 kW

Technical data
Emission norms EU IIIA, US T3
Number of cylinders 6
Bore 108 mm4.3 in
Stroke 130 mm5.1 in
Displacement 7.2 l439 cu in
Maximum nominal speed 2300 rpm
Power output 200 kW268 hp
at speeds 2300 rpm
Max. torque 1050 Nm774 lb/ft
at speeds 1500 rpm
Min. idling speed 650 rpm
Specific fuel consumption 205 g/kWh0.34 lb/hph
Length 1154 mm45.4 in
Width 694 mm27.3 in
Height 991 mm39 in
Weight 610 kg1345 lb
Download data sheet (PDF-file)
